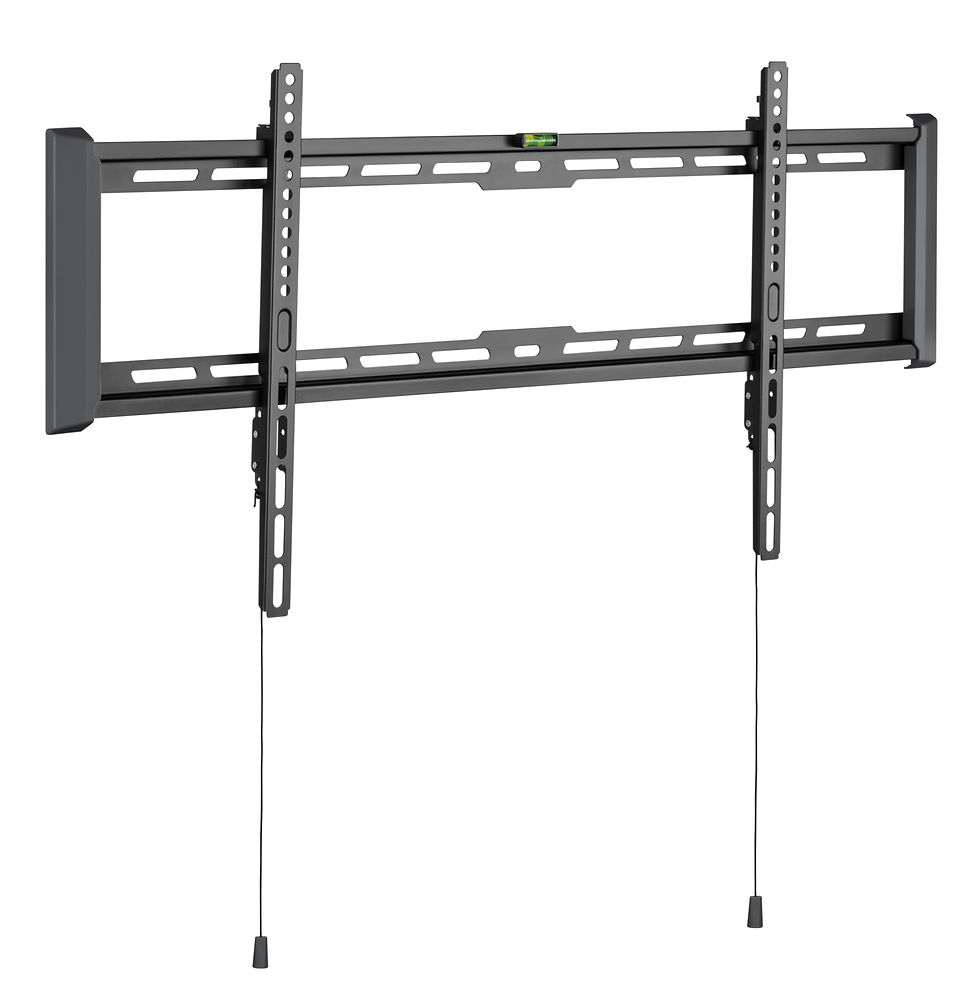

A Versitile mount, perfect for both Commercial and Residential installations.

Capable of holding up to 75KG and with a max VESA mount of 800x400mm, the AVM-7748F is a great options for when you need to trust your mount.

The AVM-7748F has height-adjusting arms which allows you to make micro-precision changes to each arm for that perfect level finish. It also offers spring-loaded mounting arms with quick-release and magnetic pull-cords. This makes mounting your TV super easy when you don't have a second person around to help you.

Specifications -

Material: Steel, Plastic

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=1.5mm cold-rolled sheet(Wall Plate THK=0.059" cold-rolled sheet, Bracket Arm THK=0.059" cold-rolled sheet)

Surface Finish: Powder Coating

Dimensions: 27x970x430mm(1.1"x38.2"x16.9")

Fit Screen Size: 43"-95"

Fit Curved TV: Yes

Mounting Hole Pattern: VESA & Universal

VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400

Max. Mounting Hole: 868x405

Weight Capacity: 75kg(165lbs)

Strength Tested: 4 Times Approved

Profile: 27mm(1.1")

Screen Level: 8mm(0.31")

Installation: Solid Wall, Double Stud(400mm/450mm/600mm)

Bubble Level: Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
