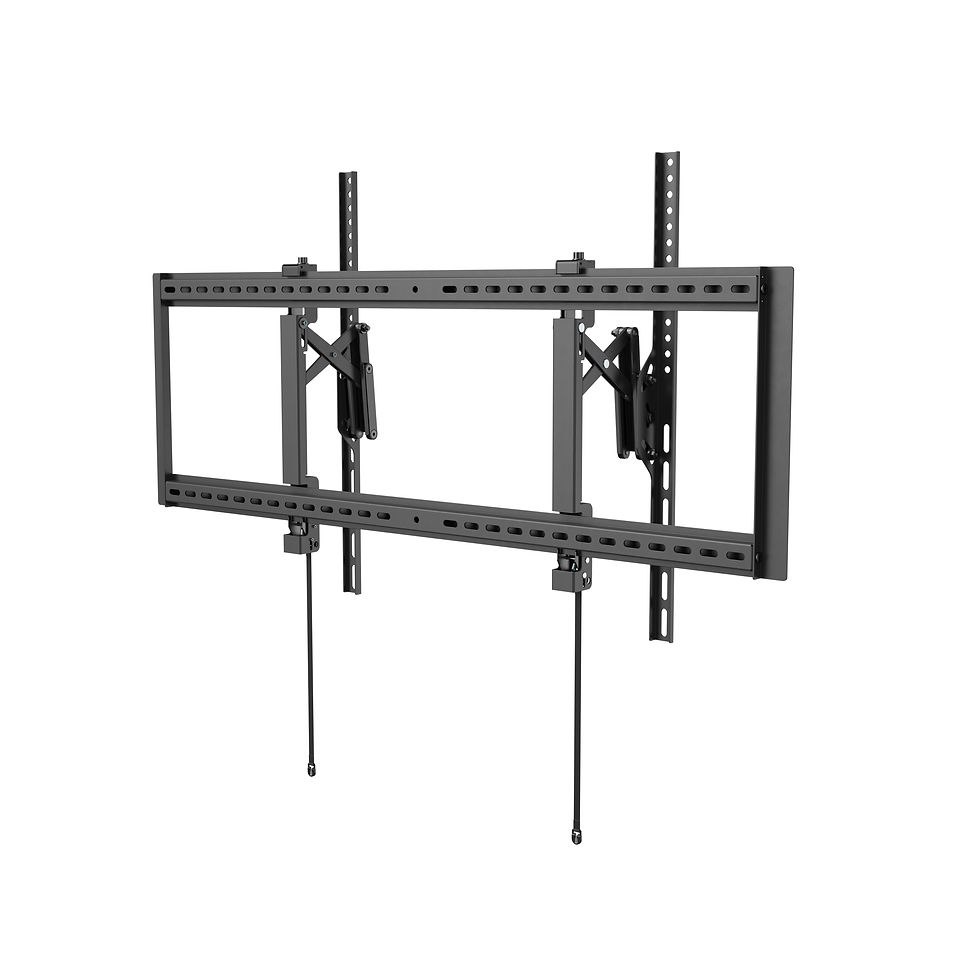

A spectacular bracket, designed to offer the perfect finish regardless of the mounting scenario.

Designed for the big, Commercial-size screens, it is the perfect option for when future servicing on a job is required. It allows a single installer to pull the display away from the wall, allowing rear access without the need to pull it off the wall.

Also a great solution for media walls, commercial signage, menu boards or those seeking flexibility from their mounting requirements.

The AVM-8061P can handle up to 80KG of weight with a max VESA of 1000x600. The wide and open mounting plate is perfect for wide stud mounting and for dodging wall-plates, wall-boxes and all things dangerous in the wall.

The anti-theft lock hole allows you to use an external padlock to secure the display to the mount. Perfect for commercial and public use where theft is highly possible.

Specifications -

Material: Steel, Plastic

Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet(Bracket Arm THK=0.079" cold-rolled sheet, Wall Plate THK=0.079" cold-rolled sheet)

Surface Finish: Powder Coating

Color: Fine Texture Black

Dimensions: 172x1070x625mm(6.8"x42.1"x24.6")

Fit Screen Size: 55"-105"

Fit Curved TV: Yes

Mounting Hole Pattern: VESA & Universal

VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,600x600,800x600,900x600,1000x600

Max. Mounting Hole: 1000x602

Weight Capacity: 80kg(176lbs)

Strength Tested: 4 Times Approved

Profile: 53~172mm(2.1"~6.8")

Tilt Range: +10°~-15°

Swivel Range: +10°~-10°

Screen Level: 30mm(1.2")

Screen Freely Tilting: Yes

Installation: Solid Wall, Double Stud(400mm/450mm/600mm)

Anti-theft: Yes

Bubble Level: Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag

Instruction Manual Included: No

Certification: UL
